Sizing solar panels and battery energy storage systems (BESS) accurately is the core of building a cost-effective, high-efficiency photovoltaic power system. Many residential and commercial solar users make the mistake of over-sizing (wasting budget) or under-sizing (frequent power shortages) their solar setups due to blind configuration without referring to actual electricity consumption.
This complete guide will walk you through a step-by-step, data-driven method to match solar panels and storage batteries to your daily, monthly, and seasonal power usage. Whether you are installing an on-grid backup solar system or an off-grid solar storage solution, this tutorial helps you achieve balanced power generation, energy storage, and power consumption.
- Calculate Your Exact Daily Electricity Consumption (The Foundation of Sizing)
All solar and battery configuration calculations start with actual energy consumption data. Estimated usage will lead to inaccurate system matching and poor operational performance. You can obtain accurate power consumption through two reliable methods.
1.1 Check Utility Electricity Bills (Best for Grid-Tied Users)
Your monthly electricity bill records the total kilowatt-hour (kWh) consumption of your property. To get the average daily energy usage:
Average Daily kWh = Monthly Total kWh ÷ 30
For more precise seasonal configuration, collect electricity bills for 12 months, calculate the average daily consumption of each season, and take the maximum value as the design baseline. This avoids power insufficiency in high-consumption seasons such as summer and winter.
1.2 Calculate Appliance Load Power (Best for Off-Grid Users)
For off-grid homes, cabins, or remote facilities without grid power, calculate the total power consumption by listing all electrical devices:
Daily Energy Consumption (Wh) = Device Power (W) × Daily Usage Hours × Device Quantity
Sum up the daily power consumption of all electrical equipment to get the total daily watt-hour (Wh) usage. This method fully covers all load scenarios and is more suitable for independent solar storage system design.
- Core Factors Affecting Solar Panel and Battery Sizing
Before formal calculation, you need to confirm four key variables that determine system configuration, which directly affect the accuracy of matching results.
2.1 Local Peak Sun Hours
Peak sun hours refer to the effective sunshine duration with solar irradiance reaching 1000W/㎡, which varies by latitude, climate, and season. Areas with insufficient peak sun hours require larger solar panel arrays to generate the same power.
2.2 System Power Loss
Actual solar power generation is lower than theoretical values due to wiring resistance, inverter efficiency loss, panel dust shading, and temperature attenuation. A 15%–25% system loss margin is a standard industry configuration.
2.3 Battery Depth of Discharge (DOD)
Different battery types have different safe discharge depths, which determine usable battery capacity and service life:
- LiFePO4 Battery: 80%–90% DOD (long cycle life, high utilization rate, mainstream choice for solar storage)
- AGM/Lead-Acid Battery: 50%–60% DOD (low cost, limited usable capacity)
2.4 Days of Energy Autonomy
Autonomy days mean the number of days the battery can support normal power consumption without solar power generation (rainy days, cloudy days, night power supply). Residential scenarios usually set 1–3 days of autonomy, while remote off-grid scenarios need 3–5 days.
- Step-by-Step Solar Panel Sizing Calculation
Solar panels are responsible for converting solar energy into DC power to supply loads and charge batteries. Follow the standard formula to calculate the required solar panel capacity.
3.1 Standard Sizing Formula
Solar Panel Array Power (W) = (Daily Total Energy Consumption Wh × Loss Margin Coefficient) ÷ Local Peak Sun Hours
3.2 Practical Calculation Example
Suppose a household has a daily power consumption of 5000Wh, local average peak sun hours of 4 hours, and a 20% system loss margin:
Required solar panel power = (5000Wh × 1.2) ÷ 4h = 1500W
You can configure 6 pieces of 250W solar panels or 3 pieces of 500W solar panels according to installation space. For winter low-sunshine seasons, appropriately increase the panel power by 10% to ensure sufficient power generation.
3.3 Solar Panel Selection Tips
- Prioritize high-efficiency monocrystalline solar panels for limited installation space
- Match panel voltage with charge controller and battery bank voltage (12V/24V/48V system)
- Avoid local shading from buildings, trees, and shelters to stabilize power generation
- Accurate Battery Storage Sizing Calculation
Batteries store excess solar power for nighttime use and low-sunshine backup. Improper battery sizing will cause frequent deep discharge (damaging batteries) or excessive idle capacity (wasting cost).
4.1 Standard Battery Capacity Formula
Battery Capacity (Wh) = Daily Energy Consumption × Autonomy Days ÷ DOD Coefficient
Battery Capacity (Ah) = Total Battery Wh ÷ System Voltage (24V/48V)
4.2 Practical Battery Sizing Example
Take the above household scenario (5000Wh daily consumption, 2-day autonomy, LiFePO4 battery with 85% DOD):
Total battery capacity = 5000Wh × 2 ÷ 0.85 ≈ 11765Wh
For a 48V solar storage system, the required battery Ah = 11765Wh ÷ 48V ≈ 245Ah. You can select a 48V 250Ah LiFePO4 battery pack to meet demand.
4.2 Battery Type Matching Suggestions
- Residential daily use: Choose LiFePO4 batteries with long life, high DOD, and low maintenance cost
- Temporary low-budget scenarios: Choose AGM lead-acid batteries, and strictly control discharge depth below 50%

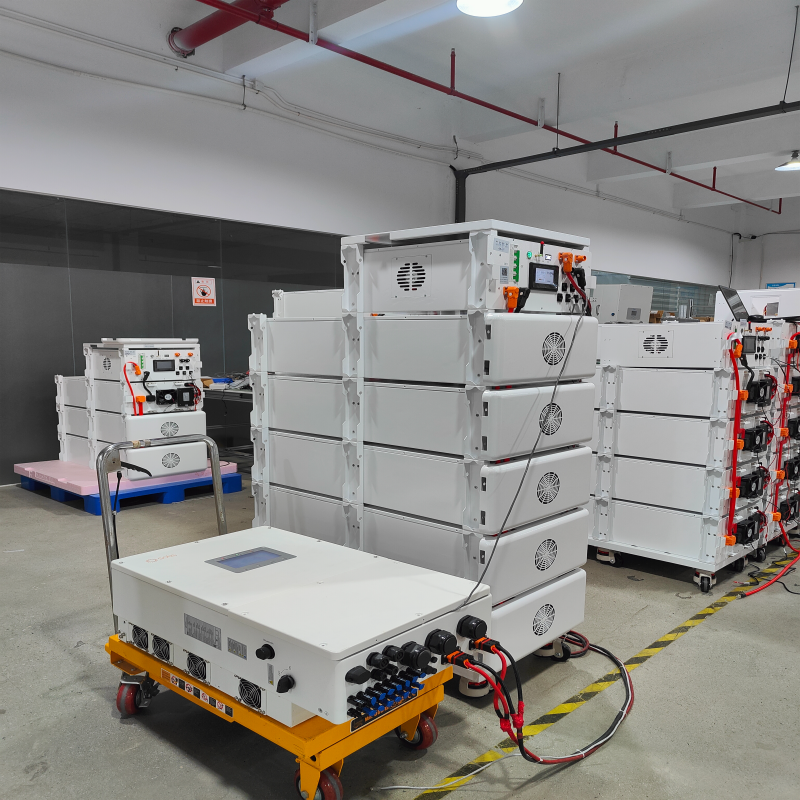

- Commercial energy storage: Use modular lithium battery packs for capacity expansion
- On-Grid vs Off-Grid System Configuration Differences
The matching logic of solar panels and batteries varies significantly between grid-tied and off-grid systems, which you need to distinguish according to application scenarios.
5.1 Grid-Tied Solar with Backup Battery
Grid-tied systems rely on the public grid for power supplement, so no excessive autonomy capacity is needed. Configure 0.5–1 day of battery autonomy, and the solar panel power only needs to cover daily self-use power consumption, reducing system investment.
5.2 Full Off-Grid Solar Storage System
Off-grid systems completely rely on solar and batteries for power supply. It is necessary to calculate based on the minimum monthly peak sun hours and configure 2–3 days of autonomy days to cope with continuous rainy weather, ensuring zero power outage.
- Common Sizing Mistakes to Avoid
- Ignoring system loss: Simply calculating theoretical power generation will lead to insufficient actual power supply
- Excessive battery autonomy: Blindly increasing battery capacity increases unnecessary equipment and installation costs
- Unmatched voltage specifications: Mismatched solar panel, battery, and controller voltage causes system failure and low power efficiency
- Ignoring seasonal differences: Sizing only based on summer sunshine hours leads to power shortage in winter
- Final System Optimization Suggestions
After completing the basic sizing calculation, optimize the system according to actual conditions to balance performance and cost:
- Reserve a 10%–15% capacity margin for subsequent increased electrical loads
- Adjust solar panel installation angle according to local latitude to maximize peak sun absorption
- Regularly clean solar panels and inspect battery status to maintain long-term system efficiency
- Match a suitable MPPT charge controller and pure sine wave inverter to reduce energy loss
Conclusion
Sizing solar panels and battery storage based on actual electricity consumption is the only way to design a stable, economical, and efficient photovoltaic energy storage system. The core logic is to take daily power consumption as the baseline, combine local sunshine conditions, system loss, battery characteristics and autonomy requirements, and complete data-driven configuration.
Whether for residential household solar storage, commercial factory power saving, or off-grid facility power supply, this step-by-step sizing method can avoid configuration errors, maximize solar energy utilization, and extend the service life of photovoltaic and battery equipment.
FAQ
Q1: Do I need battery storage for grid-tied solar systems?
A1: It depends on your demand for power backup. Batteries are not mandatory for grid-tied systems, but they can store excess solar power and provide emergency power during grid outages, reducing electricity bills further.
Q2: How many peak sun hours do most regions have?
A2: Most temperate regions have 3–5 peak sun hours daily. Sunny tropical and plateau regions have 5–7 peak sun hours, while high-latitude cold regions have 2–4 peak sun hours.
Q3: Is oversizing solar panels better than undersizing?
A3: Moderate oversizing (10%–20%) is beneficial for low-sunshine days, but excessive oversizing causes battery overcharging waste and increased costs. Undersizing will directly lead to insufficient power supply.
Q4: Why choose LiFePO4 batteries for solar storage?
A4: LiFePO4 batteries support high depth of discharge, have 6000+ cycle life, low self-discharge rate, and no maintenance, which is more cost-effective than lead-acid batteries in long-term solar storage scenarios.
